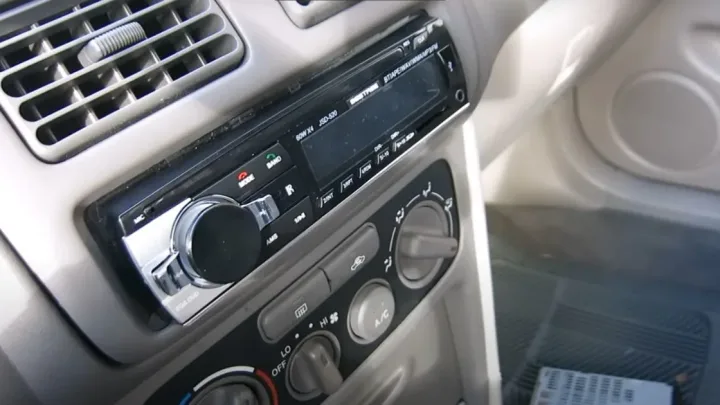

How to Install Radio on a Car: Easy Step-by-Step Guide

Installing a radio in your car can be a fun project. Yet, safety must be a top priority. Following safety precautions can prevent accidents and damage. This section covers essential safety steps.

Disconnect The Battery

Before starting, always disconnect the battery. This step is crucial to avoid electric shocks. Use a wrench to loosen the bolt on the negative terminal. Remove the cable from the battery. This action cuts off power to the car’s electrical system.

Ensure the cable doesn’t touch the battery during the installation. I

t helps in preventing accidental reconnection. Place the cable away from the battery to be extra safe.

Handling Electrical Components

Handle all electrical components with care. Use insulated tools to prevent electric shocks. Avoid touching metal parts of the tools while working.

Keep your workspace dry and clean. Moisture can cause short circuits. Ensure your hands are dry when working with wires and connectors.

Label all wires before disconnecting them. This practice helps in easy reassembly. Use a marker or labels for clear identification.

Avoid working in a confined space. Ensure good lighting to avoid mistakes. Adequate light helps in spotting any potential issues.

Wear safety goggles to protect your eyes from sparks. Gloves are also recommended for hand protection.

Step	Action
1	Disconnect the battery
2	Use insulated tools
3	Keep workspace dry
4	Label wires
5	Ensure good lighting
6	Wear safety gear

Following these safety precautions ensures a smooth and safe installation process. Keep these tips in mind to avoid any mishaps.

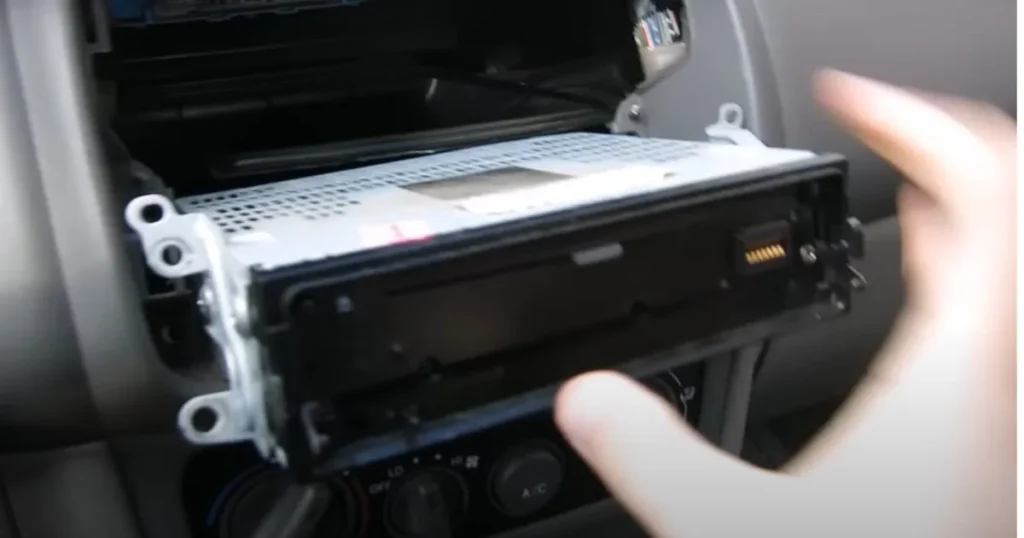

Removing The Old Car Radio

Removing the old radio from your car can seem daunting. But with the right steps, it’s simple. Follow this guide to make the process smooth.

Detach The Trim Panel

First, you need to detach the trim panel. This is the frame around your radio. Use a trim removal tool or a flathead screwdriver. Insert it carefully under the edge of the panel.

Gently pry it off. Be careful not to damage the clips. The clips hold the panel in place. They can be fragile.

Once you have removed the panel, set it aside. Now, you can see the screws that hold the radio. These screws need to be removed next.

Unplugging The Wiring Harness

After removing the screws, pull the radio out gently. You will see a wiring harness at the back.

This connects the radio to the car’s power and speakers. There may be a few connectors. Each connector needs to be unplugged.

Look for a small tab on each connector. Press this tab to release the connector. Pull it straight out.

Some cars also have an antenna wire. This is usually a single wire. Simply pull it out from the back of the radio.

Below is a table summarizing the steps:

Step	Action
1	Detach the trim panel
2	Remove the screws
3	Pull out the radio
4	Unplug the wiring harness
5	Disconnect the antenna wire

With these steps, your old radio is out. Now, you can install the new one.

Preparing For Installation

Before installing a new radio in your car, thorough preparation is essential. Proper preparation ensures a smooth and successful installation. This section will guide you through the necessary steps to get ready for installing a new car radio.

Check Compatibility

First, check if the new radio is compatible with your car. Different cars have different radio sizes and connector types. Follow these steps to ensure compatibility:

Find your car’s make and model.
Read the radio’s manual for compatibility details.
Check if you need additional adapters or kits.

Ensuring compatibility saves time and prevents issues during installation.

Assemble The Wiring Harness

Next, assemble the wiring harness. This step connects the new radio to the car’s electrical system. Follow these steps for proper assembly:

Gather the wiring harness kit and tools.
Read the wiring diagram in the radio’s manual.
Match the wires by color and function.
Use wire connectors for secure connections.

A well-assembled wiring harness ensures the radio works correctly.

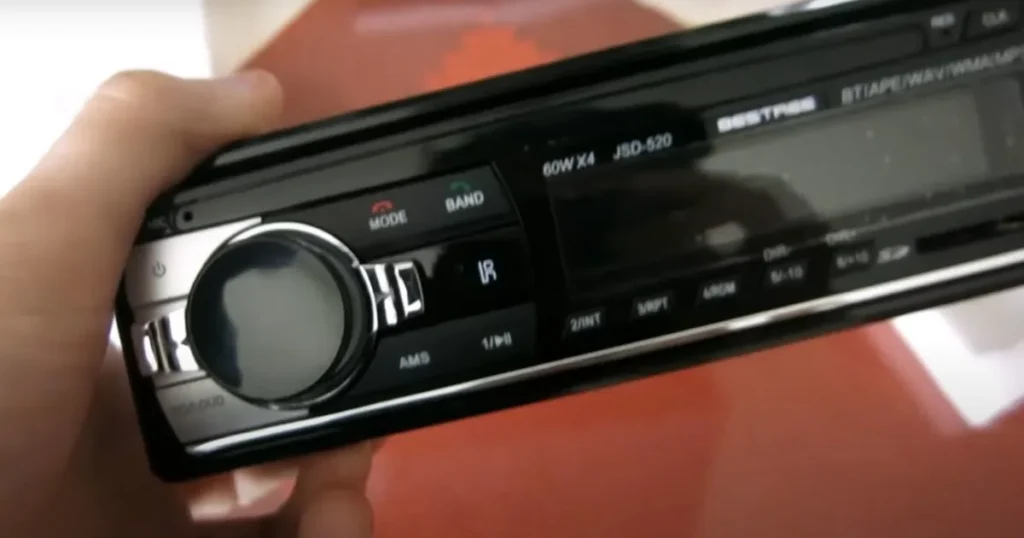

Installing The New Car Radio

Replacing your car’s radio can feel challenging. But with the right steps, it’s simple. Below, we break down the process into two main sections: Mounting the Radio and Connecting the Wiring.

This guide ensures your new radio fits perfectly and works smoothly.

Mounting The Car Radio

First, prepare your car for the new radio. Remove the old radio gently, using the right tools.

Ensure the car battery is disconnected to avoid shocks.
Use a screwdriver to remove the old radio’s screws.
Carefully pull out the old radio from the dashboard.

Next, prepare the new radio for installation. Ensure it matches the car’s dashboard.

Check the size of the new radio.
Use a mounting kit if needed.

Secure the new radio into the dashboard.

Place the radio into the dash opening.
Use screws to secure it tightly.

Connecting The Wiring

Now, connect the wires of the new radio. This step is crucial for it to work.

Wire Color	Function
Red	Power
Black	Ground
Yellow	Memory
Blue	Antenna

Follow these steps to connect the wires:

Match each wire color from the radio to the car’s wiring harness.
Use wire connectors for a secure connection.
Ensure all connections are tight and secure.

Test the new radio to ensure it works correctly. Reconnect the car battery and turn on the radio.

Check for proper power and sound.
Adjust the settings as needed.

Enjoy your new car radio with great sound and features!

Testing The Installation Car Radio

After installing your car radio, it’s crucial to test the installation. This ensures everything functions properly. Follow these steps to confirm your installation is successful.

Reconnect The Battery Car Radio Connection

First, reconnect the car battery. This step is essential to power up the radio.

Locate the car battery under the hood.
Attach the positive cable to the battery’s positive terminal.
Secure the negative cable to the negative terminal.
Ensure both connections are tight and secure.

Once the battery is reconnected, you can proceed to test the radio functions.

Testing The Functions

Now, turn on the car’s ignition and power up the radio. Check the following functions to ensure everything works correctly:

Radio Reception: Tune into various AM and FM stations.
Sound Quality: Listen for clear and distortion-free audio.
Buttons and Knobs: Test all buttons and knobs for responsiveness.
Display Screen: Ensure the display screen shows information correctly.
Bluetooth/USB: Connect your device to test connectivity options.

If any issues arise, double-check your connections and settings. Correct any loose wires or incorrect configurations.

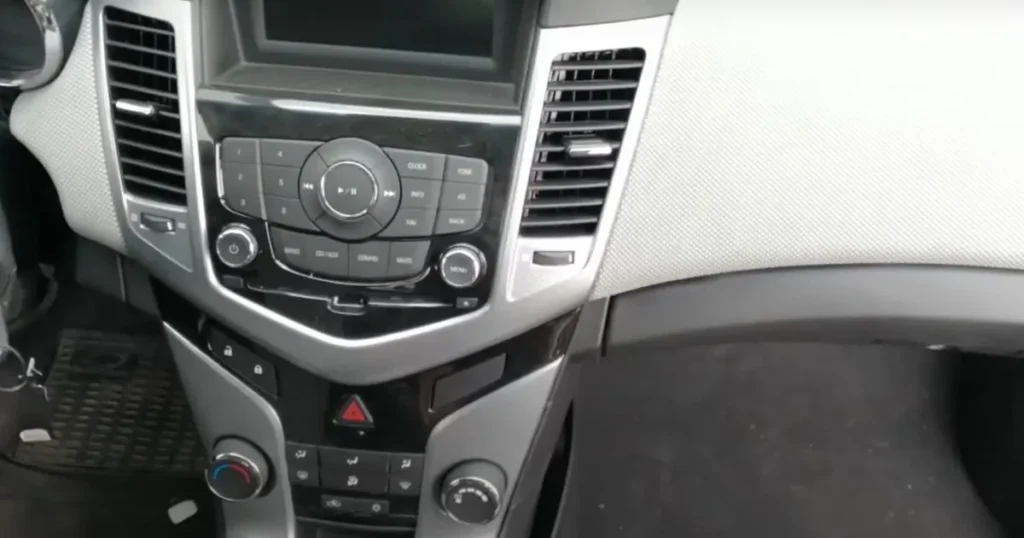

Reassembling The Dashboard

Once you have successfully installed your new car radio, it is time to reassemble the dashboard. This step is crucial to ensure that your dashboard looks neat and functions properly. Pay attention to every detail to avoid any loose parts or rattles.

Reattach The Trim Panel

Start by placing the trim panel back into its original position. Ensure all clips align with their slots.

Gently push the panel until you hear a click, indicating it is securely in place.

Some cars may have screws that hold the trim panel. If so, use a screwdriver to fasten these screws tightly.

A loose trim panel can cause annoying rattles while driving.

Securing All Components

Next, check all the components around the radio. Ensure each part is properly secured. This includes any brackets, screws, or clips you had to remove earlier.

Check that all screws are tightened.
Ensure all clips are properly engaged.
Verify that the radio is firmly seated in its slot.

If you find any loose parts, secure them immediately. A loose component could damage your new radio or cause electrical issues.

Lastly, test the radio to make sure it works. Turn on the radio and check all functions. Adjust the volume, change the stations, and test the CD or Bluetooth features. If everything works, your reassembly is complete!

Component	Action
Trim Panel	Align and snap into place
Screws	Tighten securely
Clips	Ensure they are engaged

Troubleshooting Tips on Car Radio

Installing a car radio can sometimes be tricky. Issues might arise during the process.

This section offers troubleshooting tips to help solve common problems. These tips ensure your radio works perfectly.

Common Issues

Here are some common issues you might face:

Radio does not turn on: Check the power connection. Ensure wires are connected properly.
No sound: Verify the speaker wires. Ensure they are securely connected.
Static or noise: Check the antenna connection. It should be tight and secure.
Buttons not responding: Reset the radio. Refer to the user manual.

When To Seek Professional Help

Sometimes, DIY fixes might not work. Here are signs you need a professional:

Persistent issues: If problems continue after troubleshooting.
Complex wiring: If you are unsure about wiring connections.
Special tools required: If specific tools are needed for the installation.
Damage: If any part of the radio or car is damaged.

Seeking professional help ensures safety and proper installation. It prevents further damage to your car or radio.

Frequently Asked Questions

Can I Install A Car Stereo Myself?

Yes, you can install a car stereo yourself. Follow the manual, use proper tools, and ensure all connections are secure.

What Do I Need To Install A Radio In My Car?

To install a radio in your car, you need a new radio unit, wiring harness, dash kit, and basic tools.

Can You Put Any Radio In Any Car?

Not all radios fit all cars. Compatibility depends on size, wiring, and features. Check your car’s specifications first.

Do You Need A Dash Kit To Install A Car Radio?

Yes, a dash kit is often needed to install a new car radio. It ensures a proper fit and finish.

Conclusion

Installing a radio in your car can be a rewarding DIY project. Follow these steps carefully for a smooth experience.

Ensure you have the right tools and components. Double-check connections to avoid issues.

With patience and attention to detail, you can enjoy your new car radio in no time.
