How an Ignition Box Works from Key Turn to Engine Roar

Ever wondered how your car starts with just a key turn? It’s all about the ignition box.

This crucial component transforms a simple key twist into the powerful engine roar that gets your car moving. The ignition box is the brain behind your car’s starting process. It sends the spark needed to ignite fuel in the engine.

Understanding how it works can help you appreciate the technology that powers your vehicle. From the moment you turn the key, a sequence of events begins. These events ultimately bring your engine to life. Knowing this process offers insights into both car maintenance and troubleshooting. Let’s dive into the fascinating journey from key turn to engine roar.



Introduction To Ignition Systems

Understanding how an ignition system works is crucial for car enthusiasts. It is essential to know how your car’s engine starts and runs smoothly. The ignition system is the heart of a vehicle’s engine operation. It transforms the initial key turn into that satisfying engine roar.

Purpose Of An Ignition Box

The ignition box plays a key role in the ignition system. It manages the timing and strength of the spark. The spark ignites the air-fuel mixture in the engine’s cylinders. This combustion process powers the engine. Without the ignition box, the engine wouldn’t start or run efficiently.

Historical Evolution

The ignition system has evolved over the years. Early cars used mechanical systems. These systems were less efficient and required frequent maintenance. Modern cars now use electronic ignition systems. These systems are more reliable and need less maintenance. The development of the ignition box has significantly improved engine performance and reliability.

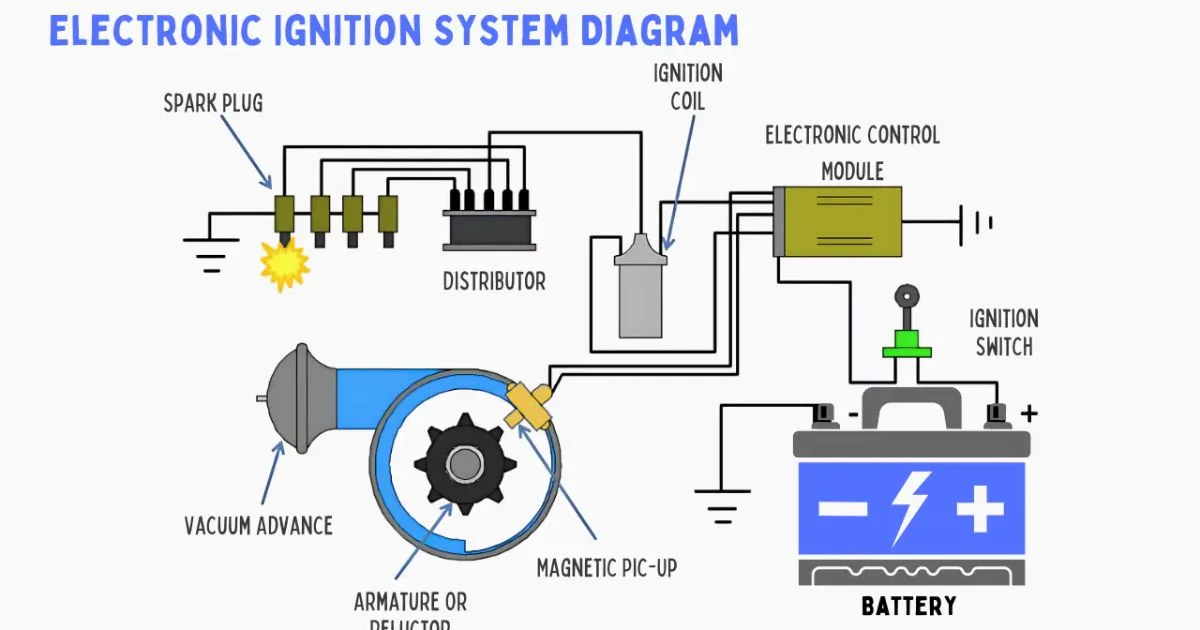

Components Of An Ignition Box

Have you ever wondered what goes on under the hood when you turn the key and your car roars to life? It’s all thanks to the ignition box, a crucial component of your vehicle’s ignition system. Understanding the components of an ignition box can help you appreciate the fascinating process that converts your key turn into engine power. Let’s dive into the essential parts and supporting elements that make this magic happen.

Main Parts

The ignition box is made up of a few key parts that work together seamlessly. Here’s a closer look:

  • Ignition Coil: This is where the magic starts. The ignition coil converts the 12V battery voltage into a much higher voltage, which is needed to create the spark that ignites the fuel.
  • Distributor: The distributor takes the high voltage from the ignition coil and routes it to the correct cylinder at the right time. It’s like a traffic cop for electricity!
  • Ignition Module: This small but mighty part controls the timing of the spark. It ensures that the spark occurs at exactly the right moment for optimal engine performance.

Supporting Elements

While the main parts do the heavy lifting, several supporting elements play vital roles in ensuring everything runs smoothly:

  1. Spark Plugs: Spark plugs are the final destination for the high voltage. They create the spark that ignites the fuel-air mixture in the combustion chamber.
  2. Wiring: The wiring connects all the components of the ignition system. Think of it as the veins in your body, carrying vital signals and power.
  3. Battery: The battery provides the initial voltage that the ignition coil needs to work its magic. Without the battery, nothing would happen when you turn the key!

Isn’t it amazing how these components work together? Next time you start your car, take a moment to appreciate the intricate dance happening under the hood. And remember, if any of these parts fail, your engine won’t roar—it’ll just sit there quietly. Understanding these components can help you diagnose issues and keep your car running smoothly. So, whether you’re a car enthusiast or just a curious driver, knowing how an ignition box works is a valuable piece of knowledge.

Turning The Key

Imagine this: you are sitting in your car, ready to drive. You insert the key into the ignition and turn it. What happens next? This simple action sets off a chain of events that brings your engine to life. Let’s dive into the fascinating journey from turning the key to hearing that satisfying engine roar.

Initial Electrical Signal

The moment you turn the key, you create an initial electrical signal. This signal travels quickly through the ignition switch. The ignition switch is like a gatekeeper. It decides where the electricity should go next. Think of it as the start of a relay race, where the baton (electricity) is handed off to the next runner (the battery).

Role Of The Battery

Now, let’s talk about the battery. The battery is the powerhouse of your car’s electrical system. It stores the energy needed to start the engine. When the ignition switch sends the signal, the battery jumps into action. It releases a burst of electrical energy. This energy travels through wires and reaches the starter motor.

The starter motor is like a strong arm. It turns the engine over, getting it ready to run. But the battery’s job is not done yet. It also powers other important parts of the ignition system, like the spark plugs. These spark plugs create tiny explosions inside the engine. These explosions are what make the engine roar to life.

Without the battery, your car would be silent. So next time you turn the key, remember the important role the battery plays in that exciting moment when your engine comes alive.

Spark Generation

Ever wondered what happens when you turn your car key and the engine roars to life? The magic lies in the ignition system, and at the heart of it is the spark generation. This process ensures that your engine gets the spark it needs to start running. Let’s break down how this works, step by step, so you can understand it better.

Coil Function

The coil is like the middleman in the spark generation process. It takes a low voltage from the battery and transforms it into a high voltage. Think of it as a supercharger for electricity. Without it, the spark plug wouldn’t get enough power to ignite the fuel.

Here’s a simple analogy: imagine trying to light a campfire with a single matchstick. Now, imagine using a flamethrower instead. The coil turns that matchstick into a flamethrower, making sure the spark plug gets a powerful jolt.

Spark Plug Operation

The spark plug is where the magic happens. Once the coil sends the high voltage through the ignition wires, the spark plug uses this energy to create a spark. This spark ignites the air-fuel mixture in the engine’s cylinders, causing a small explosion that powers the engine.

  • Tip: Always keep your spark plugs clean and properly gapped for the best performance.
  • Fun Fact: A single spark plug can fire thousands of times per minute!

Imagine the spark plug as the drummer in a rock band, keeping the beat steady and consistent. Without it, the engine wouldn’t have the rhythm it needs to run smoothly.

So next time you turn your car key, remember the coil and spark plug working together behind the scenes. It’s a fascinating process that transforms a simple key turn into the powerful roar of your engine.

Timing And Control

Ever wondered what happens from the moment you turn your car key to when the engine roars to life? It’s all about timing and control. This critical process ensures your engine fires up correctly every time. Let’s dive into the fascinating world of the ignition box and how it orchestrates this symphony of sparks and timing.

Electronic Control Unit

The Electronic Control Unit (ECU) is the brain behind the ignition system. Think of it as the conductor of an orchestra. The ECU receives signals from various sensors and then sends commands to different components of the engine. Its main job is to ensure everything happens at the right time.

The ECU monitors:

  • Engine speed
  • Crankshaft position
  • Air and fuel mixture
  • Temperature

All these inputs help the ECU to decide the perfect moment to ignite the fuel-air mixture in the combustion chamber. Without the ECU, your engine would be out of sync and inefficient.

Timing Mechanism

The Timing Mechanism is where the magic happens. Timing is everything in an engine. If the spark comes too early or too late, the engine won’t run smoothly. Here’s how it works:

  1. Crankshaft Position Sensor: This sensor keeps track of the crankshaft’s position and speed. It sends this data to the ECU.
  2. Camshaft Position Sensor: This sensor monitors the camshaft’s position, helping the ECU to know the exact moment to ignite the spark plug.
  3. Ignition Coil: The ECU sends a signal to the ignition coil, which then generates a high voltage spark.
  4. Spark Plug: Finally, the spark plug ignites the fuel-air mixture, causing the engine to fire up.

This sequence of events happens in milliseconds and is constantly adjusted by the ECU for optimal performance. The result? Your engine runs smoothly, efficiently, and with the power you need.

So, the next time you turn your car key, remember the intricate dance of timing and control happening under the hood. It’s all thanks to the brilliant design of the ignition system, ensuring you get from point A to point B without a hitch.

Stay tuned for more insights into the world of automotive engineering!

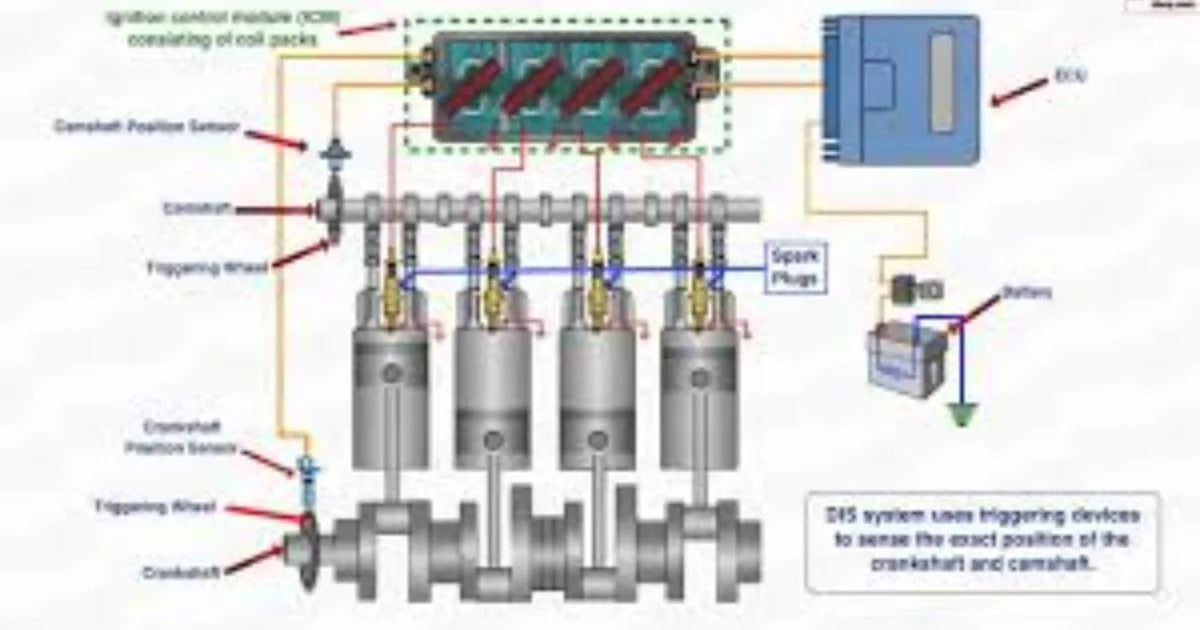

Fuel And Air Mixture

The fuel and air mixture is crucial for your car’s engine. It determines the efficiency and power of your vehicle. The ignition box plays a significant role in controlling this mixture. Let’s dive into how fuel injection and air intake work together to make your engine roar.

Fuel Injection

Fuel injection systems deliver fuel directly into the engine’s cylinders. Modern cars use electronic fuel injectors for precision. This system controls the amount of fuel sent to the engine. The ignition box signals the injectors to release fuel at the right time. This ensures optimal combustion and performance.

Each injector sprays a fine mist of fuel. This mist mixes well with air for efficient burning. Proper fuel injection reduces emissions and improves fuel economy. It also ensures your engine runs smoothly, without knocking or pinging.

Air Intake

The air intake system provides the necessary oxygen for combustion. It pulls air from outside and filters it. Clean air is vital for a smooth-running engine. The ignition box helps in timing the air intake process.

The throttle body controls the amount of air entering the engine. It opens and closes based on your accelerator pedal’s position. The ignition box ensures this happens at the right moment. A proper air-fuel ratio is key for power and efficiency.

A well-functioning air intake system boosts engine performance. It also helps in maintaining the right engine temperature. Clean, cold air can make a big difference in your car’s power output.

Combustion Process

The combustion process is the heart of your vehicle’s engine. It converts fuel into the power needed to move your car. This process begins with the ignition sequence and ends with the power stroke. Understanding these phases helps you grasp how your engine roars to life.

Ignition Sequence

The ignition sequence starts with turning the key. This action sends an electrical signal to the ignition box. The ignition box then distributes a high voltage to the spark plugs. The spark plugs ignite the air-fuel mixture inside the cylinders. This ignition is crucial for the combustion process.

Power Stroke

After ignition, the power stroke follows. During this phase, the ignited air-fuel mixture expands. This expansion pushes the piston down. The movement of the piston generates mechanical energy. This energy is transferred to the crankshaft. The crankshaft then turns, powering the vehicle’s wheels.

Engine Roar

When you turn the key in your car, one of the most thrilling moments is the engine roar. This sound signals the engine has started. It’s a powerful and exhilarating moment. But what makes this roar so special? Let’s dive into the mechanics and factors that contribute to this unique sound.

Sound Dynamics

The roar of the engine involves complex sound dynamics. Sound waves travel through various parts of the engine. These waves create the distinctive noise we hear. The engine size, type, and design influence these dynamics. The materials used in the engine also play a crucial role.

Exhaust System

The exhaust system is key to the engine’s roar. It channels exhaust gases away from the engine. This process produces sound waves. The design and condition of the exhaust system affect the sound. A well-maintained system enhances the roar’s quality. Modifications can also change the sound.

Common Issues

Ignition boxes play a crucial role in the smooth operation of a vehicle’s engine. But they can face some common issues. Understanding these problems helps in maintaining the ignition system. This section will explore common issues, troubleshooting methods, and maintenance tips.

Troubleshooting

If your engine does not start, the ignition box might be faulty. First, check the connections. Loose or corroded wires can cause problems. Inspect the ignition coil. A damaged coil prevents the engine from starting. Look at the spark plugs. Worn spark plugs can affect engine performance.

Another issue could be a malfunctioning ignition switch. Test the switch with a multimeter. It should show continuity when turned on. If not, replace it. Sometimes, software issues cause the ignition box to fail. Updating the software might solve the problem.

Maintenance Tips

Regular maintenance can prevent many ignition box issues. Clean the connections periodically. Use a wire brush to remove corrosion. Ensure all wires are tight. Replace old or damaged wires immediately.

Inspect the ignition coil and spark plugs every few months. Replace them if necessary. Keep the ignition box clean. Dust and dirt can affect its performance. Use a soft cloth to wipe it down.

Update the software of the ignition box regularly. Check the manufacturer’s guidelines for updates. Follow them to keep the system running smoothly.

Future Of Ignition Systems

The future of ignition systems looks promising. With rapid advancements in technology, the way vehicles start and run is changing. These innovations not only improve performance but also contribute to a greener environment.

Technological Advances

Technological advances in ignition systems are remarkable. Traditional mechanical systems are being replaced by electronic ones. These systems provide better control and efficiency. Smart ignition systems can now communicate with other vehicle systems. This ensures optimal performance and safety.

Wireless ignition systems are also emerging. These systems use radio waves to start the engine. No more keys. Just a simple push of a button. These systems offer convenience and security. They make it harder for thieves to steal vehicles.

Environmental Impact

Modern ignition systems have a positive environmental impact. They help reduce emissions by improving engine efficiency. Electronic systems ensure a cleaner and more complete fuel burn. This means fewer pollutants are released into the air.

Hybrid and electric vehicles benefit greatly from advanced ignition systems. These systems are designed to work seamlessly with electric motors. They provide smooth and efficient transitions between power sources. This reduces the overall carbon footprint of the vehicle.

With these innovations, the future of ignition systems looks bright. They promise improved performance, convenience, and a cleaner environment.

Conclusion

Understanding how an ignition box works helps keep your car running smoothly. From turning the key to hearing the engine roar, every part plays a role. Knowing this process can make you appreciate your vehicle more. Regular checks and maintenance ensure everything works perfectly.

Keep your ignition system in good shape, and enjoy smooth drives every time.
